Standard Material Specification

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
		Type A105	Type F22	Type F304(L)	Type F316(L)
1	Body	A105	A182 F22	A182 F304(L)	A182 F316(L)
2	Gasket	Corrugated SS+graphite		SS+PTFE
3	Bonnet Bolt	A193 B7	A193 B16	A193 B8	A193 B8M
4	Pin	A276 420		A276 304
5	Gland	A276 410		A182 F304(L)	A182 F316(L)
6	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
7	Gland Nut	A194 2H	A194 4	A194 8	A194 8M
8	Yoke Nut	A276 410
9	H.W.Nut	A194 2H	A194 4	A194 8	A194 8M
10	Nameplate	SS
11	Handwheel	A197
12	Gland Flange	A216 WCB		A351 CF8
13	Stem Packing	Flexible Graphite		PTFE
14	Bonnet	A105	A276 304	A182 F304(L)	A182 F316(L)
15	Stem	A182 F6	A182 F304	A182 F304(L)	A182 F316(L)
16	Disc	A276 420	A276 304	A276 304(L)	A276 316(L)
Suitable Medium		W.O.G.etc		W.O.G.etc	HNO3,CH3OOH etc
Suitable Temperature		-29??425?		-29??550?	-29??180?

Note: Other materials are available upon request.
     CS=Carbon Steel; AS=Alloy Steel; SS=Stainless Steel.

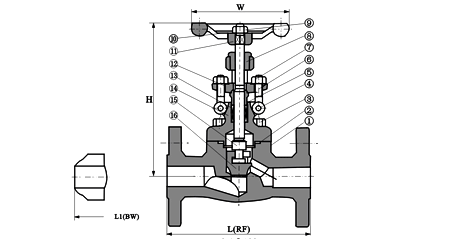

Dimension (mm) and Weight (Kg)

NPS			1/2"	3/4"	1"	11/4"	11/2"	2"
L(RF) L1(BW)	150Lb		108	117	127	140	165	203
	300Lb		152	178	203	216	229	267
	600Lb		165	190	216	229	241	292
H(open)	150Lb?300Lb		166	171	207	240	258	330
	600Lb		171	207	240	258	330	380
W			100	100	125	160	160	180
Weight	150Lb	RF	4.5	6.9	9.8	13.5	19.5	28.0
		BW	2.3	3.6	7.8	8.2	12.0	15.0
	300Lb	RF	4.8	7.7	11.0	16.8	21.2	32.6
		BW	2.8	4.0	8.5	9.2	12.6	16.8
	600Lb	RF	5.6	7.8	12.5	17.0	23.5	38.8
		BW	3.4	4.7	9.2	10.5	13.3	18.9

NPS		1/2"	3/4"	1"	11/4"	11/2"	2"
L(RTJ)	900Lb?1500Lb	216	229	254	279	305	371
H(BW)	900Lb?1500Lb	216	229	254	279	305	368
H(Open)		207	207	240	258	330	355
W		125	125	160	160	180	200
Weight	RTJ	8.0	13.2	17.4	19.0	24.5	31.0
	BW	5.2	10.0	14.6	15.8	20.5	27.8
