Flanged globe valve 900LB~1500LB

Flanged globe valve 900LB~1500LB

Edit Date: 2016/1/7      View:
  • Brand: feiqiu
  • Standards: API 602、ASME B16.34、BS 5352
  • Class: 900LB~1500LB
  • Size: 1/2"-2"
  • Material: A105, F11,F304(L), F316(L) etc.
  • Medium: water, oil, steam etc.
Introduction

Flanged globe valves 900LB~1500LB are used to cut or connect the pipe medium under nominal pressure between Class150~1500, working temperature≤600℃ in oil industry,chemical industry, pharmaceuticals, fertilizer and power industry.

Application Standard:
API 602、ASME B16.34、BS 5352
Testing according to API 598
Marking to MSS SP25
Socket Welded Ends to ASME B16.11
Screwed Ends to ASME B16.11
Butt Welded Ends to ASME B16.25
Flanged Ends to ASME B16.5

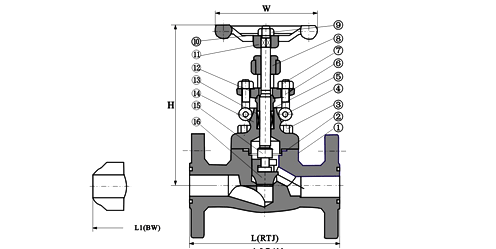

flanged globe valve

Standard Material Specification

NO. Part Name CS to ASTM

AS to ASTM

SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Gasket Corrugated SS+graphite SS+PTFE
3 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
4 Pin A276 420 A276 304
5 Gland A276 410 A182 F304(L) A182 F316(L)
6 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Gland Nut A194 2H A194 4 A194 8 A194 8M
8 Yoke Nut A276 410
9 H.W.Nut A194 2H A194 4 A194 8 A194 8M
10 Nameplate SS
11 Handwheel A197
12 Gland Flange A216 WCB A351 CF8
13 Stem Packing Flexible Graphite PTFE
14 Bonnet A105 A276 304 A182 F304(L) A182 F316(L)
15 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
16 Disc A276 420 A276 304 A276 304(L) A276 316(L)
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃
Note:Other materials are available upon request.     CS=Carbon Steel; AS=Alloy Steel;SS=Stainless Steel;


Dimension (mm) and Weight (Kg)

NPS 1/2" 3/4" 1" 11/4" 11/2" 2"
L(RTJ) 900Lb~1500Lb 216 229 254 279 305 371
H(BW) 900Lb~1500Lb 216 229 254 279 305 368
H(Open) 207 207 240 258 330 355
W 125 125 160 160 180 200
Weight RTJ 8.0 13.2 17.4 19.0 24.5 31.0
BW 5.2 10.0 14.6 15.8 20.5 27.8
